Dense and Sparse PBM from XYZ Parquet

This example shows an axis-aligned workflow that starts dense and then creates a sparse model from filtered rows.

Workflow:

1. Create a source Parquet file with a synthetic fe column.

2. Create a dense PBM via from_parquet().

3. Filter the source rows to fe > 57.

4. Create a second PBM from that sparse input.

5. Compare dense and sparse models visually.

import tempfile
from pathlib import Path

import pandas as pd
import pyarrow as pa
import pyarrow.parquet as pq
import pyvista as pv

from parq_blockmodel import ParquetBlockModel
from parq_blockmodel.utils.demo_block_model import create_toy_blockmodel

Create a Centroid Parquet File

Use the toy helper to write a parquet file containing x, y, z centroid columns and a synthetic fe grade.

temp_dir = Path(tempfile.gettempdir()) / "sparse_parquet_to_pbm"
temp_dir.mkdir(parents=True, exist_ok=True)

source_parquet = temp_dir / "dense_source.parquet"
toy_df = create_toy_blockmodel(
    shape=(14, 12, 8),
    block_size=(10.0, 10.0, 5.0),
    corner=(0.0, 0.0, 0.0),
    grade_name="fe",
    grade_min=45.0,
    grade_max=70.0,
    deposit_center=(70.0, 60.0, 20.0),
    deposit_radii=(45.0, 35.0, 18.0),
    noise_std=0.0,
)

# Build an xyz-indexed source parquet for the external-use-case scenario.
source_df = toy_df.reset_index(drop=False)
source_df = source_df.drop(columns=["i", "j", "k"], errors="ignore")
source_df = source_df.set_index(["x", "y", "z"]).sort_index()
source_df.to_parquet(source_parquet)

loaded_source_df = pd.read_parquet(source_parquet)
if loaded_source_df.index.names != ["x", "y", "z"]:
    raise RuntimeError("Expected source parquet to load with MultiIndex ['x', 'y', 'z'].")
if any(col in loaded_source_df.columns for col in ["i", "j", "k"]):
    raise RuntimeError("Source parquet must not contain i, j, k columns.")

loaded_source_df.head()

			block_id	depth	depth_category	fe
x	y	z
5.0	5.0	2.5	0	37.5	deep	45.0
		7.5	1	32.5	deep	45.0
		12.5	2	27.5	deep	45.0
		17.5	3	22.5	deep	45.0
		22.5	4	17.5	shallow	45.0

Create Dense PBM

Promote the raw centroid parquet to the canonical .pbm format.

pbm_dense = ParquetBlockModel.from_parquet(source_parquet)
pbm_dense

ParquetBlockModel(name=dense_source, path=/tmp/sparse_parquet_to_pbm/dense_source.pbm)

Filter to High-Grade Rows (fe > 57)

Filter the original block rows, then write a sparse parquet while preserving geometry metadata from the dense PBM so the sparse model keeps the same grid.

source_table = pq.read_table(pbm_dense.blockmodel_path)
source_df = pd.read_parquet(source_parquet)

filtered_df = source_df[source_df["fe"] > 57.0].copy()
filtered_df = filtered_df.reset_index().sort_values(["x", "y", "z"])

if filtered_df.empty:
    raise RuntimeError("No rows matched fe > 57. Lower the threshold or adjust toy model parameters.")

filtered_df.head()

	x	y	z	block_id	depth	depth_category	fe
0	55.0	55.0	17.5	523	22.5	deep	58.501200
1	55.0	55.0	22.5	524	17.5	shallow	59.853246
2	55.0	55.0	27.5	525	12.5	shallow	58.153335
3	55.0	65.0	12.5	530	27.5	deep	59.669567
4	55.0	65.0	17.5	531	22.5	deep	60.954389

sparse_parquet = temp_dir / "sparse_fe_gt57.parquet"
sparse_table = pa.table({col: filtered_df[col].to_numpy() for col in filtered_df.columns})
sparse_table = sparse_table.replace_schema_metadata(source_table.schema.metadata)
pq.write_table(sparse_table, sparse_parquet)

print(f"Dense rows : {len(source_df):,}")
print(f"Sparse rows: {len(filtered_df):,}")

Dense rows : 1,344
Sparse rows: 34

Create Sparse PBM

The sparse parquet is now promoted to a second PBM.

pbm_sparse = ParquetBlockModel.from_parquet(sparse_parquet)

print(f"Dense is sparse?  {pbm_dense.is_sparse}")
print(f"Sparse is sparse? {pbm_sparse.is_sparse}")
print(f"Sparse fraction   {pbm_sparse.sparsity:.2%}")

Dense is sparse?  False
Sparse is sparse? True
Sparse fraction   97.47%

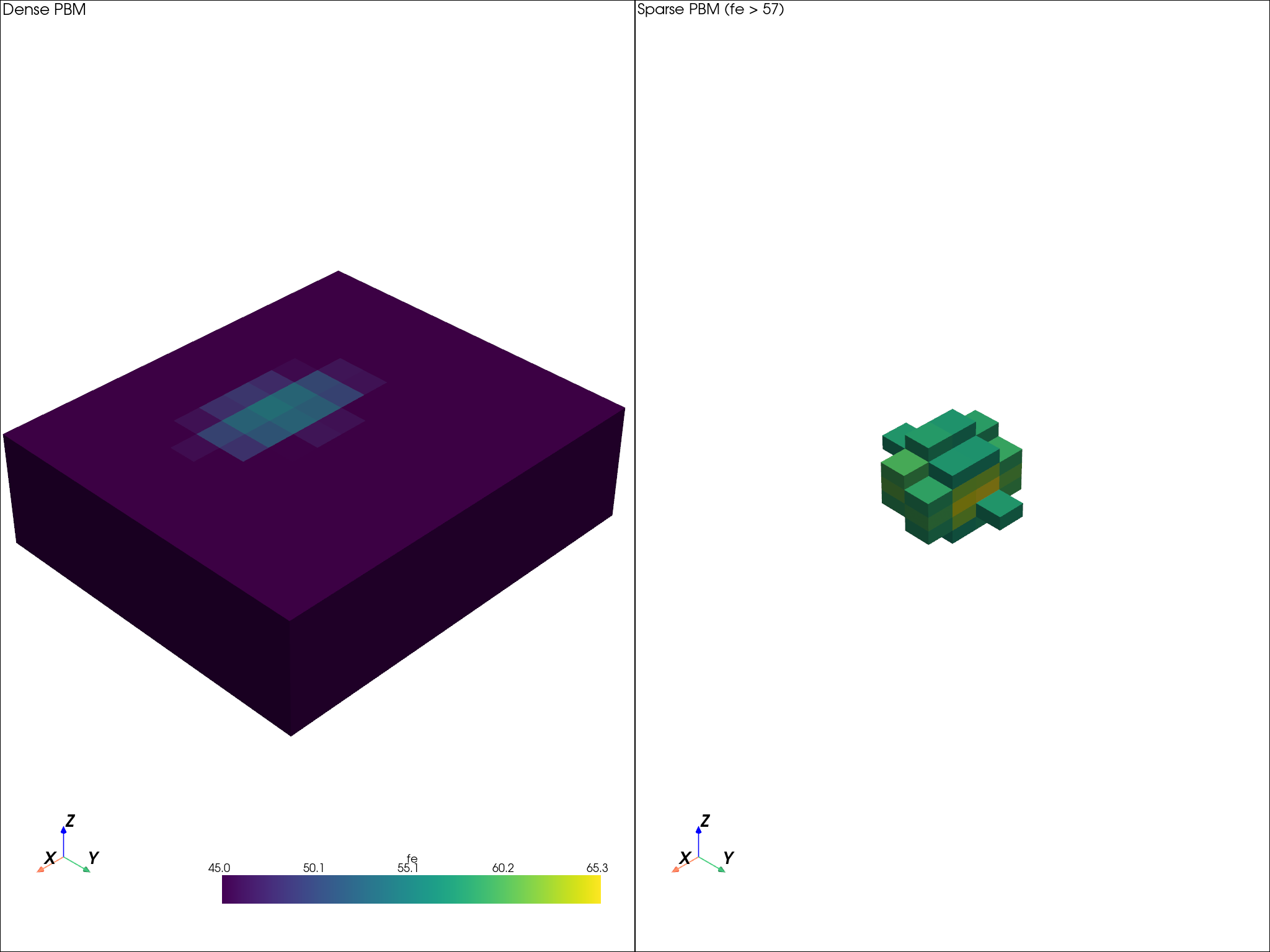

Compare the Two Models

Visualize both models side-by-side with a shared color range.

dense_grid = pbm_dense.to_pyvista(grid_type="image", attributes=["fe"])
sparse_grid = pbm_sparse.to_pyvista(grid_type="unstructured", attributes=["fe"])

fe_min = float(source_df["fe"].min())
fe_max = float(source_df["fe"].max())

plotter = pv.Plotter(shape=(1, 2))

plotter.subplot(0, 0)
plotter.add_text("Dense PBM", font_size=11)
plotter.add_mesh(dense_grid, scalars="fe", clim=[fe_min, fe_max], show_edges=False)
plotter.show_axes()

plotter.subplot(0, 1)
plotter.add_text("Sparse PBM (fe > 57)", font_size=11)
plotter.add_mesh(sparse_grid, scalars="fe", clim=[fe_min, fe_max], show_edges=False)
plotter.show_axes()

plotter.link_views()
plotter.show()
